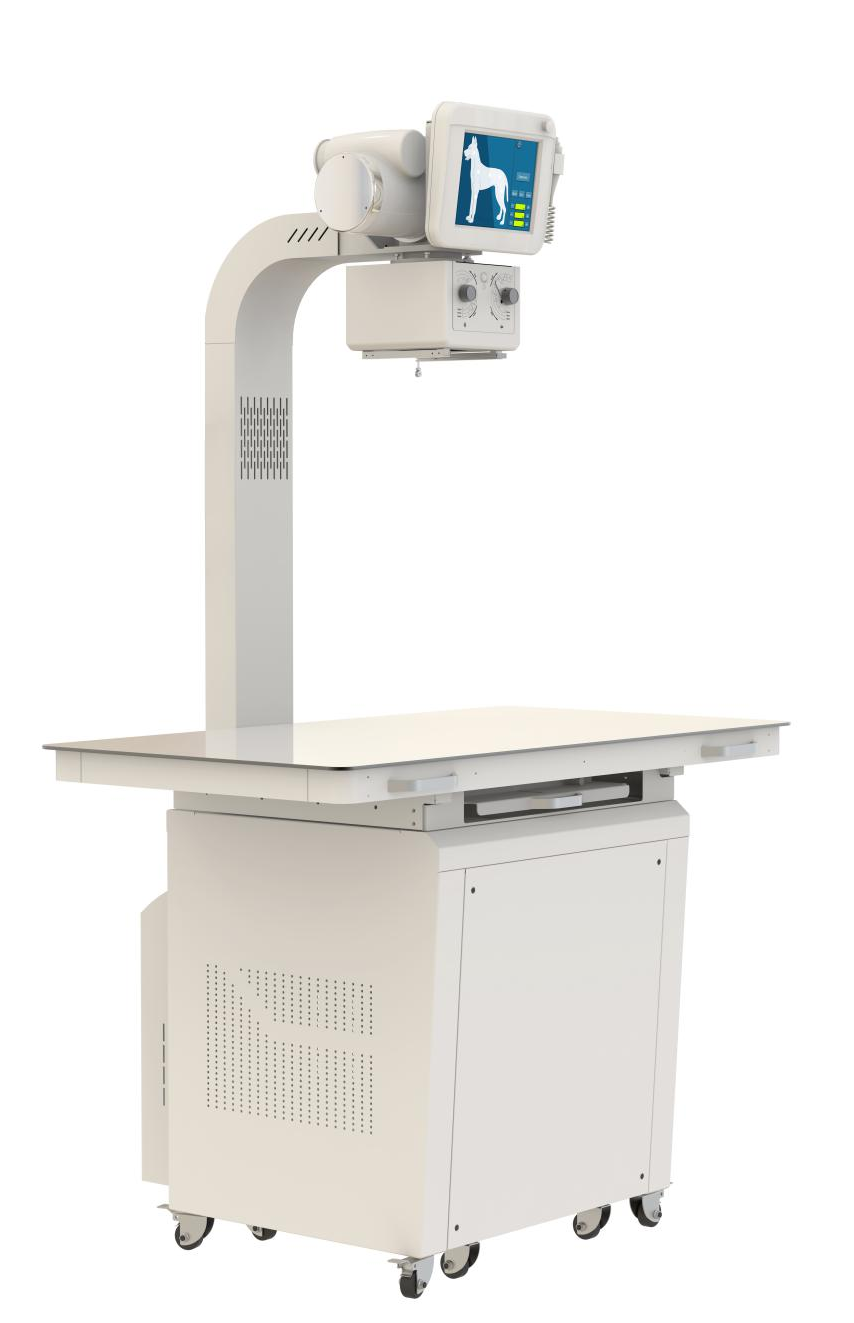

SINO-D20R

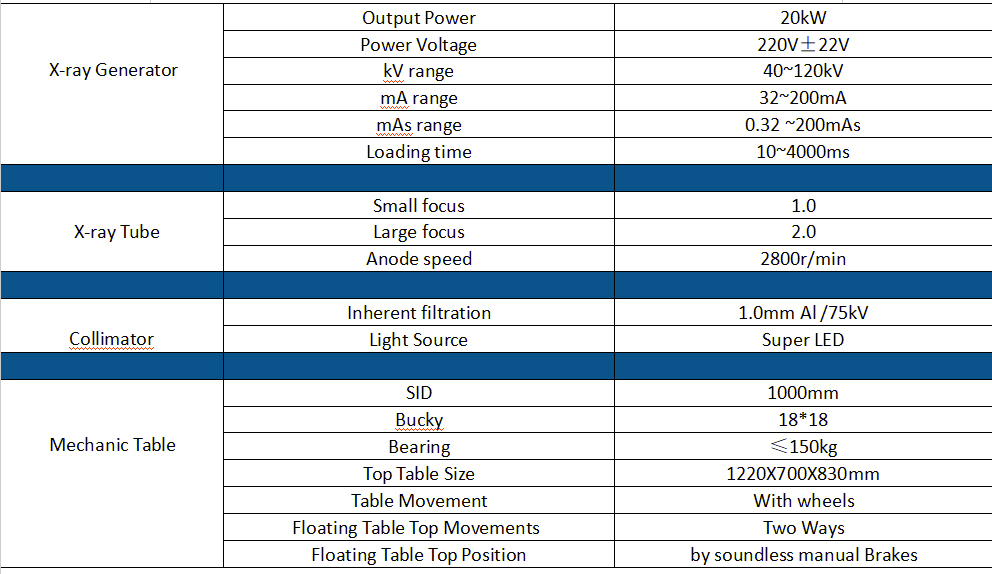

| Category | Parameter | Specification |
|---|---|---|
| X-ray Generator | Output Power | 20kW |
| Power Voltage | 220V±22V | |
| kV range | 40~120kV | |
| mA range | 32~200mA | |
| mAs range | 0.32~200mAs | |
| Loading time | 10~4000ms | |
| X-ray Tube | Small focus | 1.0 |
| Large focus | 2.0 | |
| Anode speed | 2800r/min | |
| Collimator | Inherent filtration | 1.0mm Al/75kV |
| Light Source | Super LED | |
| Mechanic Table | SID | 1000mm |
| Bucky | 18*18 | |
| Bearing | ≤150kg | |
| Top Table Size | 1220X700X830mm | |
| Table Movement | With wheels | |
| Floating Table Top Movements | Two Ways | |
| Floating Table Top Position | by soundless manual Brakes |
